2LED Module | 160°

Professional Module Light Supplier

LEDZ have been a top LED Module supplier since 2010. Our high-quality LED modules are Inection Moulded, designed for bright, uniform illumination in signage and lightboxes. Fitted with High Efficient Epistar LED chips made in Taiwan, our modules deliver excellent brightness and High Colour Consistency (MacAdam 4) and backed by a 5 Year Warranty.

2LED Module 160° 2835 Chip Back Lit



LED Module Dimensions:

LED Module Specifications:

• 94 lumens output at just 1.0W
• High Efficiency 2835 LED, Up to 98lm/W
• Special polycarbonate lens – light transmittance > 88%
• Wide 175° beam for even light spread
• IP67 waterproof for indoor & outdoor use
• Light decay < 30% after 50,000 hrs
• LM80 international certificate for LEDs
• High Color consistency (MacAdam 3) (one bin)
• Colour Rendering Index (CRI) >80
• Easy install with 3M tape
• 5-year warranty

Color of LED Module



LED Module Distribution Graph

LED Module Applications

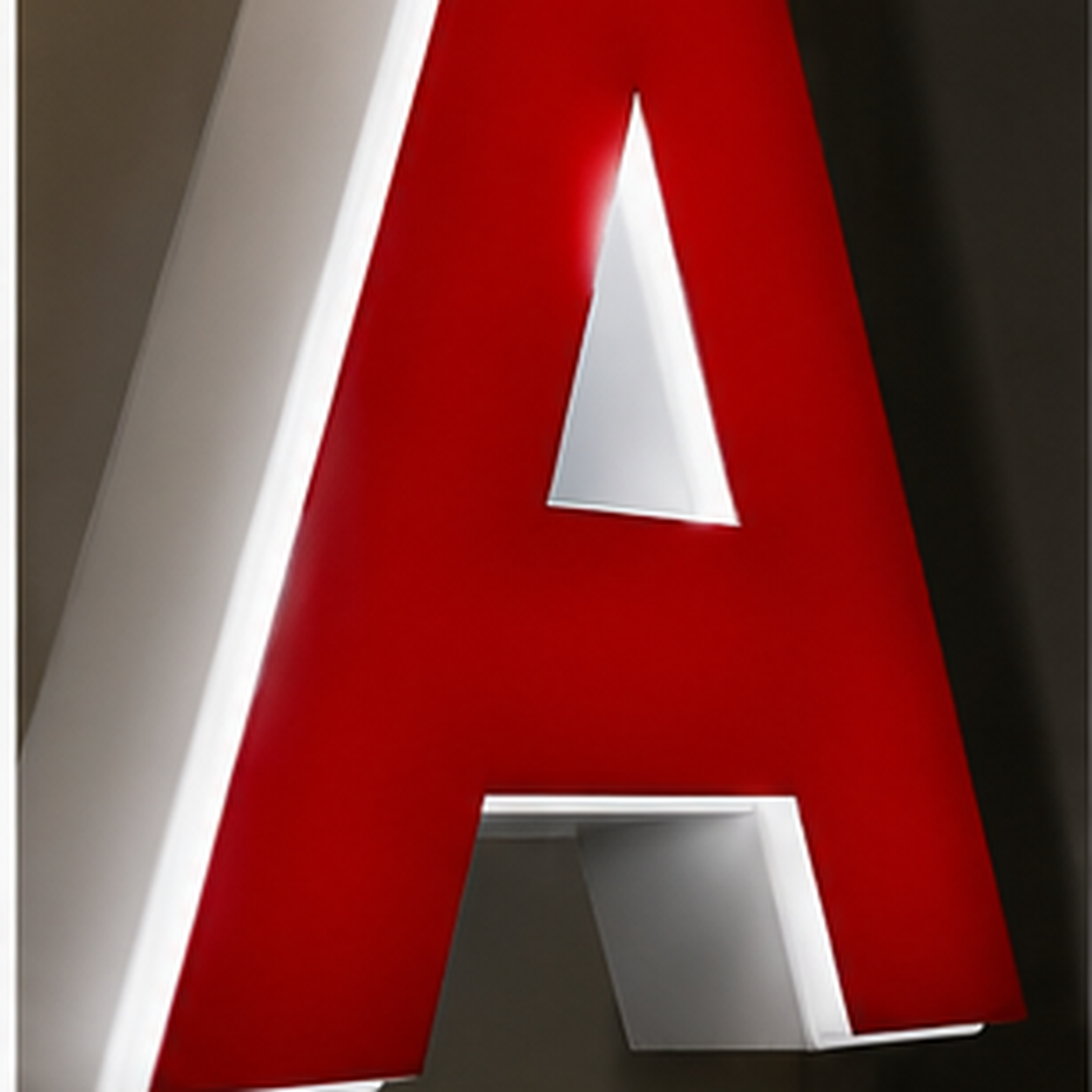

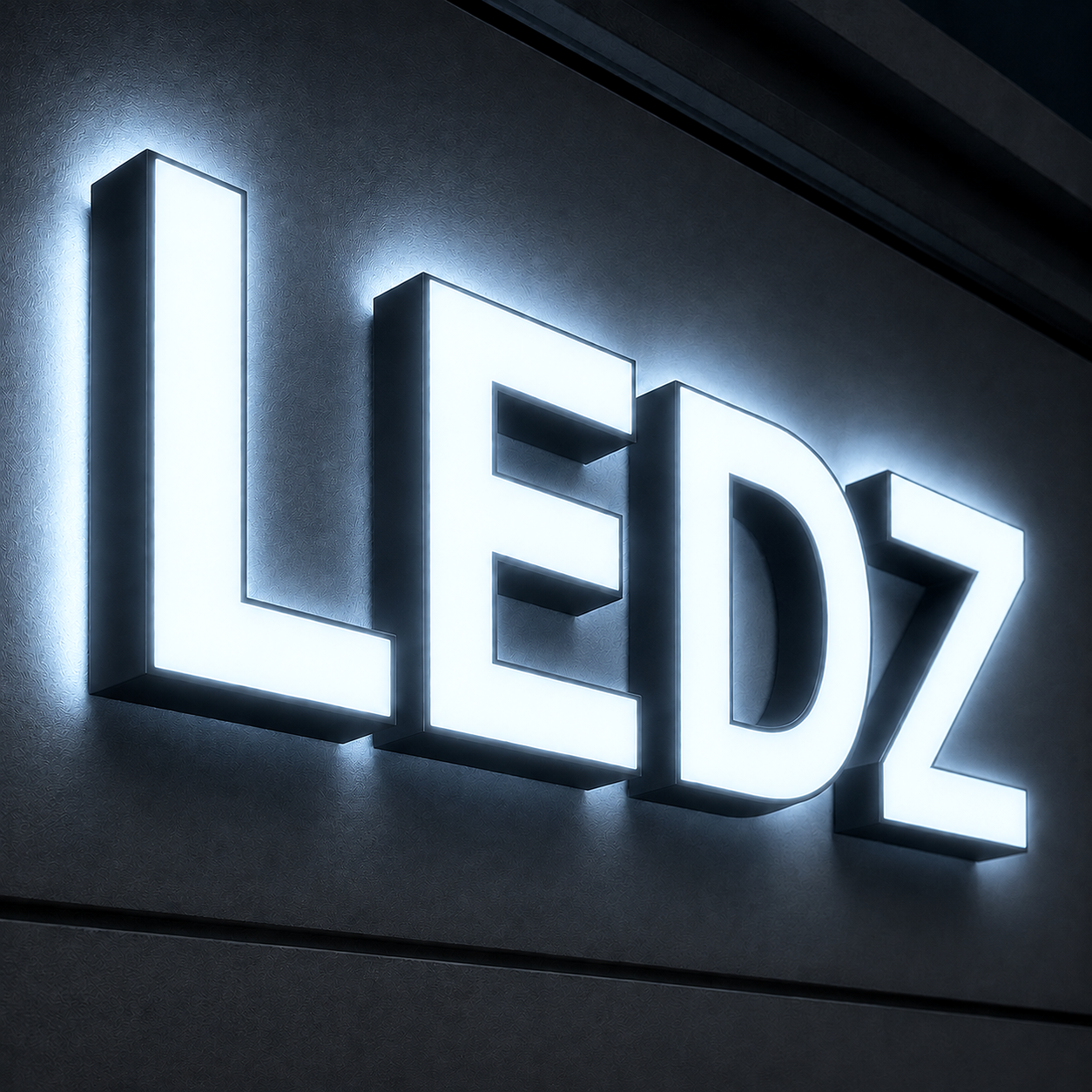

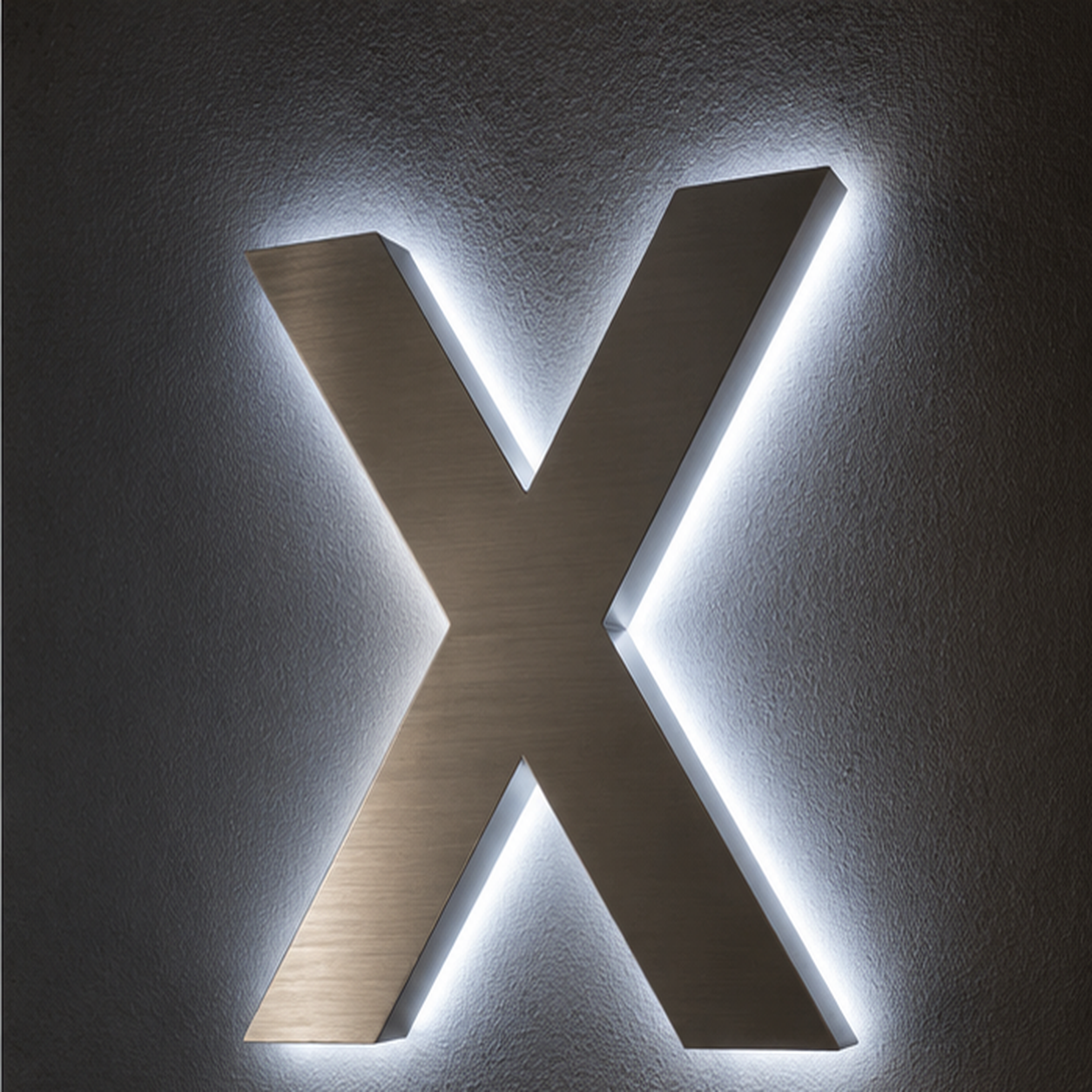

Signage & Channel Letters
LEDZ LED modules are the perfect solution for illuminating signage and channel letters.

Retail & Display Lighting
From shopfront windows to exhibition stands, LEDZ modules provide vibrant, eye-catching illumination that helps products and displays stand out.

Decorative Lighting
Add a modern, creative touch to any space with LEDZ LED modules—perfect for both residential and commercial decorative installations.

LED Module Installation

Max. number of modules in one chain when the power supplied from single end -20pcs

Popular Backlit Modules

3LED 2835 1.5W Module	3LED 2835 1.5W Module 175°	4LED 2835 0.72W Module

LED Module Package
