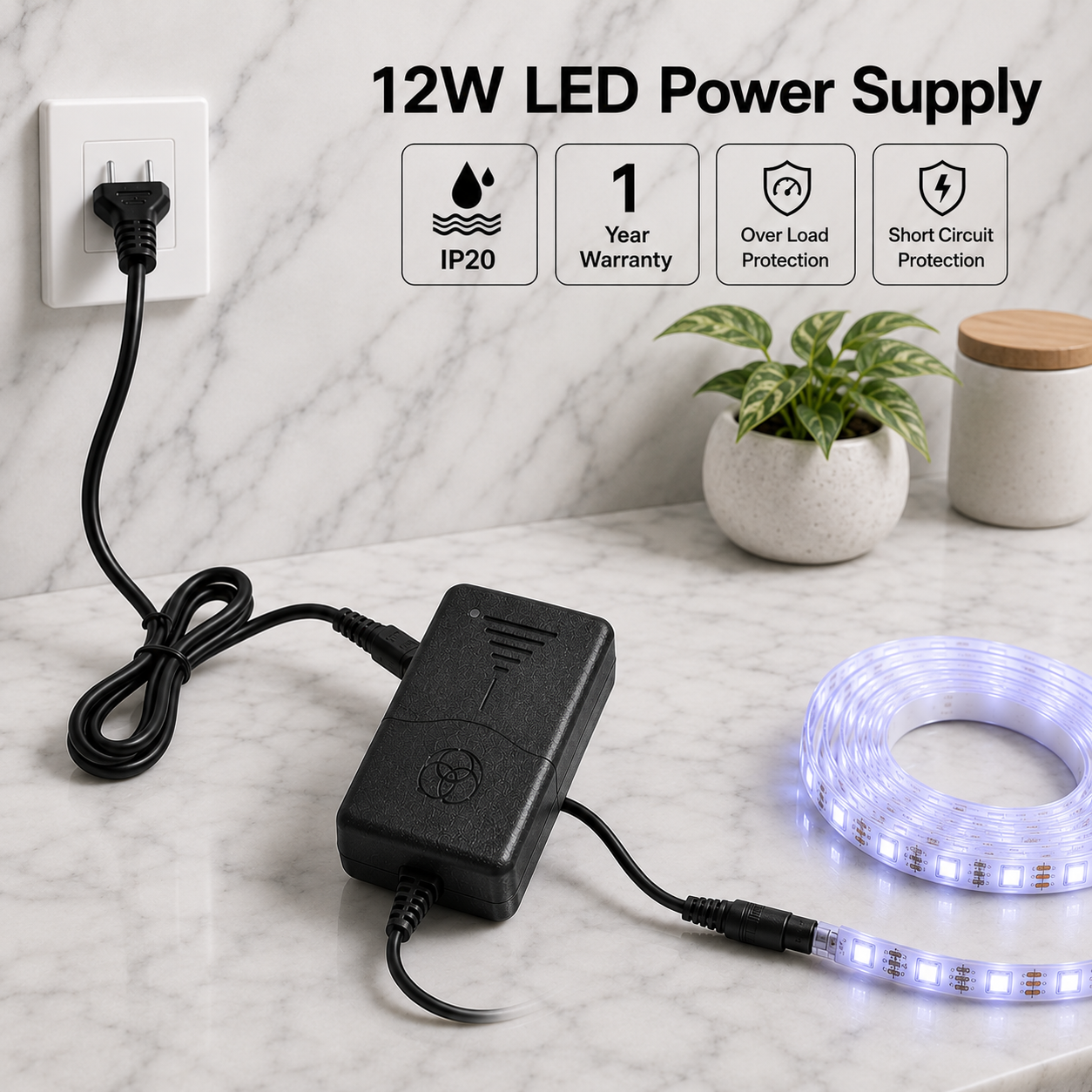

12W LED Driver | Power Supply

An LED Power Supply converts standard 230V AC mains electricity to the low-voltage DC power required to safely operate LED products.

Always use the same voltage Power Supply as the LED product.

Examples:

• 12V LED Strip Light → 12V Power Supply
• 24V LED Strip Light → 24V Power Supply

Calculate the required wattage using the following formula:

Strip Light Length (m) × Power (Watts/m) + 15%

Example:

5m × 10W/m = 50W

50W + 15% = 57.5W

Therefore, a 60W or 75W Power Supply would be suitable.

It is highly unlikely to receive a dangerous electric shock from the low-voltage output (12V or 24V DC) of the Power Supply.

However, we always recommend completing the installation, checking all connections thoroughly, and only then connecting the Power Supply to the 230V mains supply.

Indoor Power Supplies should be installed in a safe, dry, dust-free, moisture-free, and well-ventilated location to ensure reliable operation and maximum lifespan.

Yes. We stock a wide range of waterproof and weather-resistant LED Power Supplies designed for outdoor installations where protection against moisture and dust is required.

Outdoor Power Supplies should be mounted off the ground to prevent pooling water or splash damage.

For the best protection, install them beneath roof eaves, patio covers, or inside a ventilated waterproof enclosure to shield them from direct rain and excessive sunlight.

A quality LED Power Supply should include built-in safety features such as:

• Short Circuit Protection
• Overload Protection
• Over-Voltage Protection

These protections help safeguard both the Power Supply and your connected LED lighting from damage, improving reliability and extending product life.
